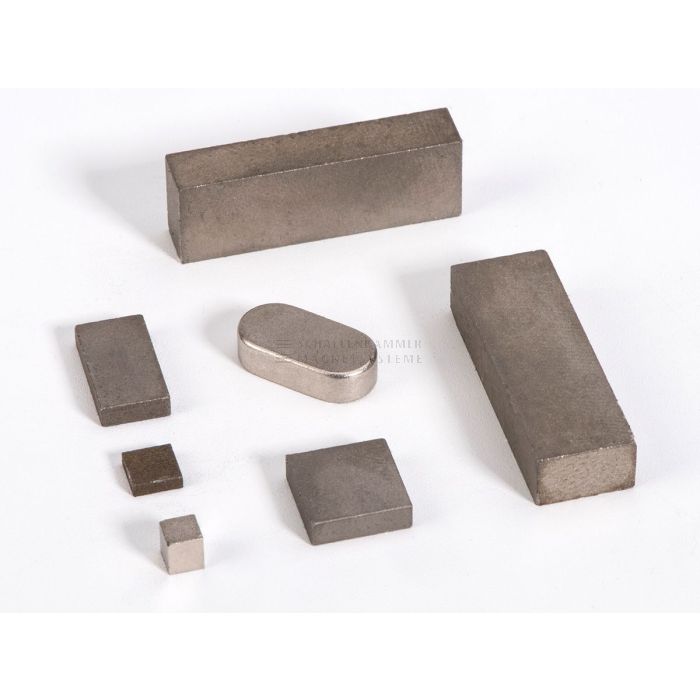

Block magnet, samarium-cobalt
Item number
34300GP
In stock
Block magnet made of samarium-cobalt (SmCo), magnetized over dimension H (axial), operating temperature up to approx. 250 °C, 350 °C. Samarium-cobalt magnets (SmCo) are a brittle and hard material with a high energy product. Compared to AlNiCo or ferrite magnets, smaller shapes can be used with the same holding force. Compared to NdFeB magnets, SmCo magnets are more heat-resistant. They are only supplied in an anisotropic version. Magnetization takes place exclusively in the preferred direction. Strong opposing fields do not weaken the magnetic field. SmCo magnets are resistant to corrosion, but not to inorganic acids and alkalis.
| Delivery time in days | 5 |
|---|
All products
Block magnet, L: 3,5 mm, W: 3,5 mm, H: 4 mm, Sm2Co17
Item number: 34330
Length (L) in mm: 3.5
Width (B) in mm: 3.5
Height h1 in mm: 4
Delivery time in days: 5
Block magnet, L: 13 mm, W: 7 mm, H: 2,5 mm, SmCo5
Item number: 34412
Length (L) in mm: 13
Width (B) in mm: 7
Height h1 in mm: 2.5
Delivery time in days: 5
Block magnet, L: 22,8 mm, W: 2,7 mm, H: 7 mm, SmCo5
Item number: 34427
Length (L) in mm: 22.8
Width (B) in mm: 2.7
Height h1 in mm: 7
Delivery time in days: 5
Block magnet, L: 20 mm, W: 3,5 mm, H: 6 mm, Sm2Co17, Zn coated
Item number: 34431
Length (L) in mm: 20
Width (B) in mm: 3.5
Height h1 in mm: 6
Delivery time in days: 5
Block magnet, L: 25 mm, W: 6,4 mm, H: 9,5 mm, Sm2Co17, ZN coated
Item number: 34435
Length (L) in mm: 25
Width (B) in mm: 6.6
Height h1 in mm: 9.5
Delivery time in days: 5
Block magnet, L: 15 mm, W: 3,5 mm, H: 6 mm, Sm2Co17
Item number: 34437
Length (L) in mm: 15
Width (B) in mm: 3.5
Height h1 in mm: 6
Delivery time in days: 5
Block magnet, L: 20 mm, W: 5 mm, H: 10 mm, Sm2Co17, Sn coated
Item number: 34444
Length (L) in mm: 20
Width (B) in mm: 5
Height h1 in mm: 10
Delivery time in days: 5
Block magnet, L: 10 mm, W: 10 mm, H: 3 mm, Sm2Co17
Item number: 34511
Length (L) in mm: 10
Width (B) in mm: 10
Height h1 in mm: 3
Delivery time in days: 5
Block magnet, L: 50 mm, W: 10 mm, H: 4,8 mm, Sm2Co17
Item number: 3457101
Length (L) in mm: 50
Width (B) in mm: 10
Height h1 in mm: 4.8
Delivery time in days: 5
