3D-CAD data from Schallenkammer
In cooperation with CADENAS, Schallenkammer offers 2D and 3D CAD drawings - ideal for designers who want to make rapid progress.
Our data can be processed with the following CAD programs:
-
Catia
-
Auto CAD
-
Pro/E
-
NX
- Solid Designer
- SolidWorks
- Me10
- Creo
- Solid Edge
- Unigraphics
- Inventor
It's as simple as that:

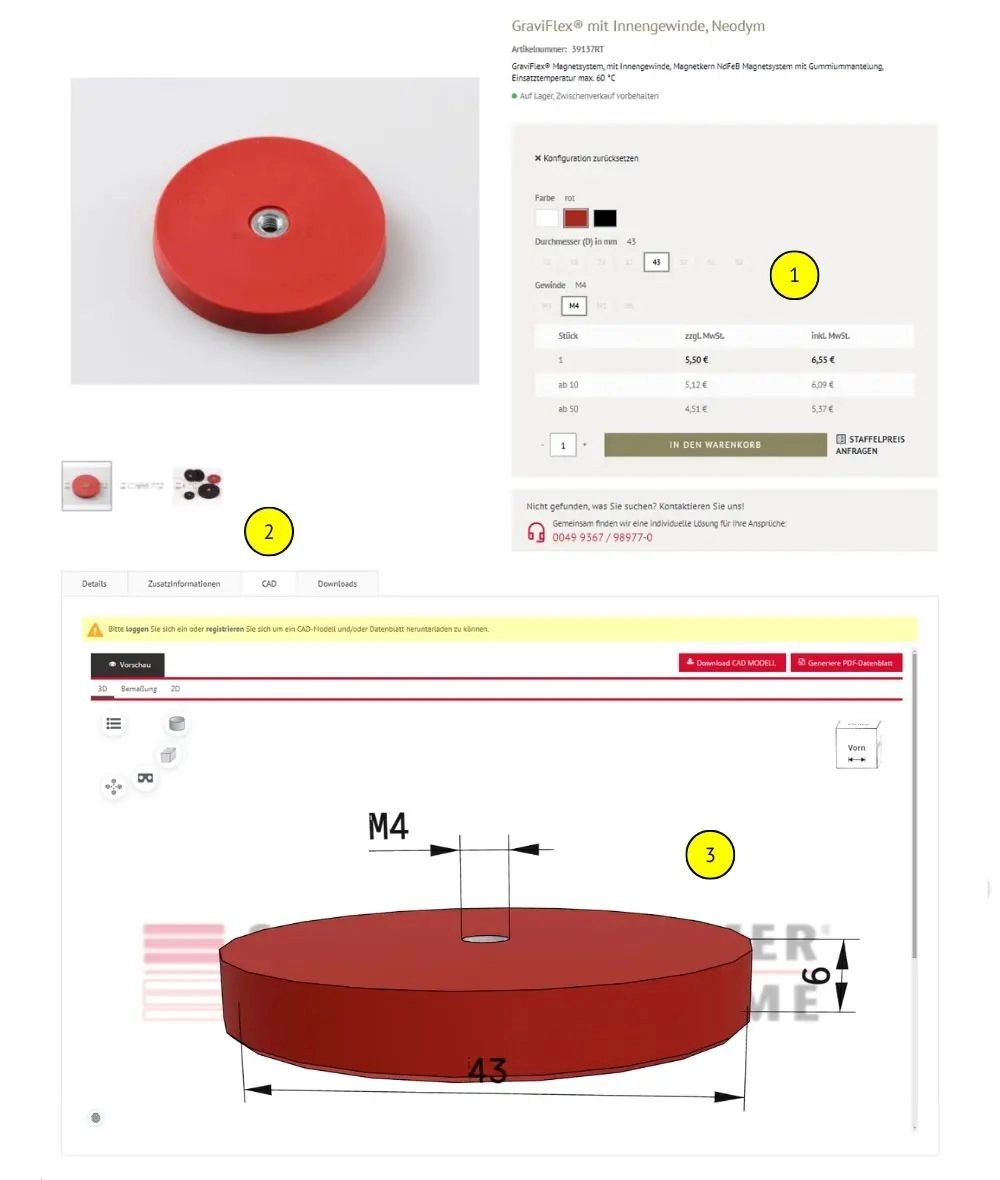

- Configure your desired individual item.

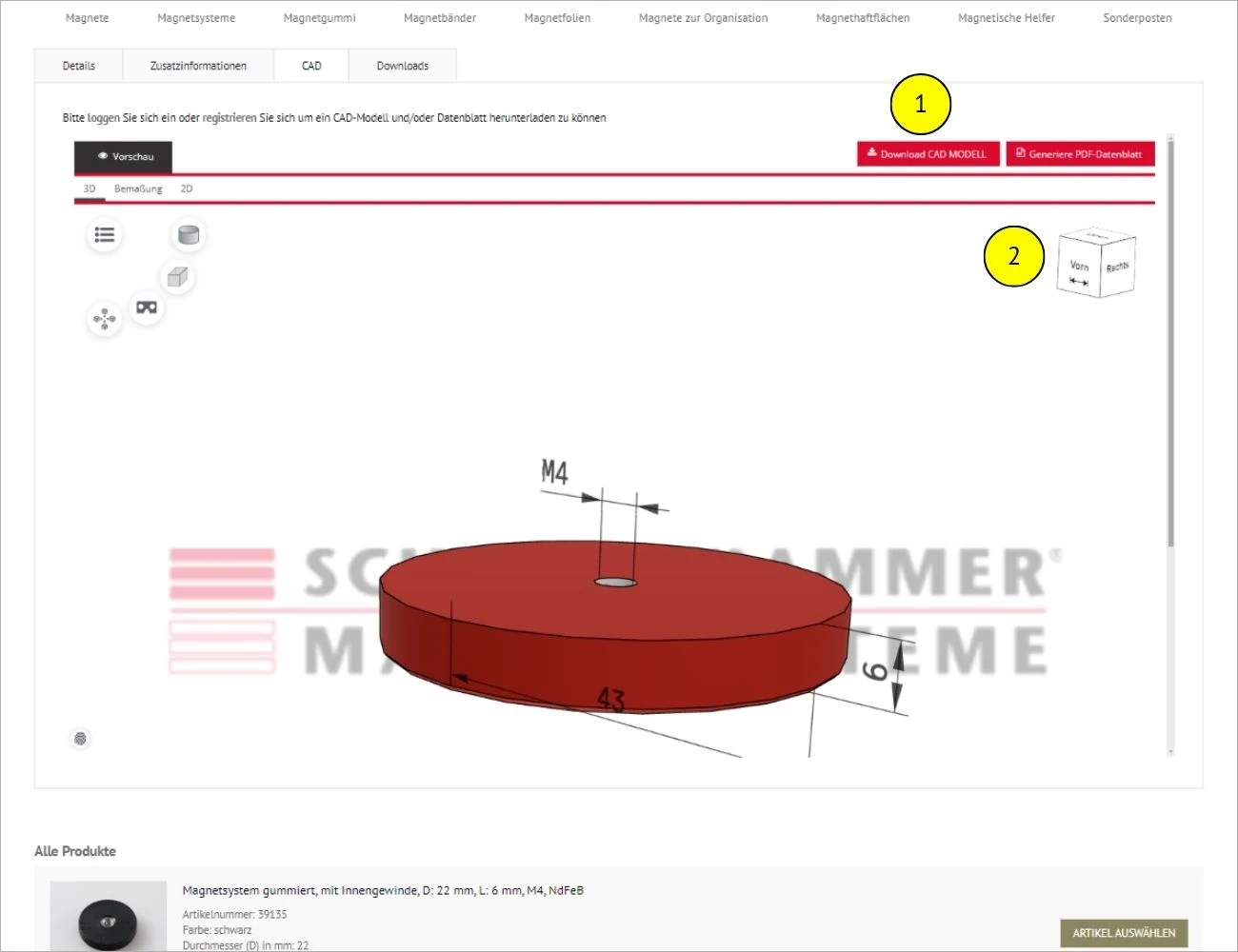

- Click on the CAD tab for the product.
- The 3D CAD model opens.
- Please log in or register.

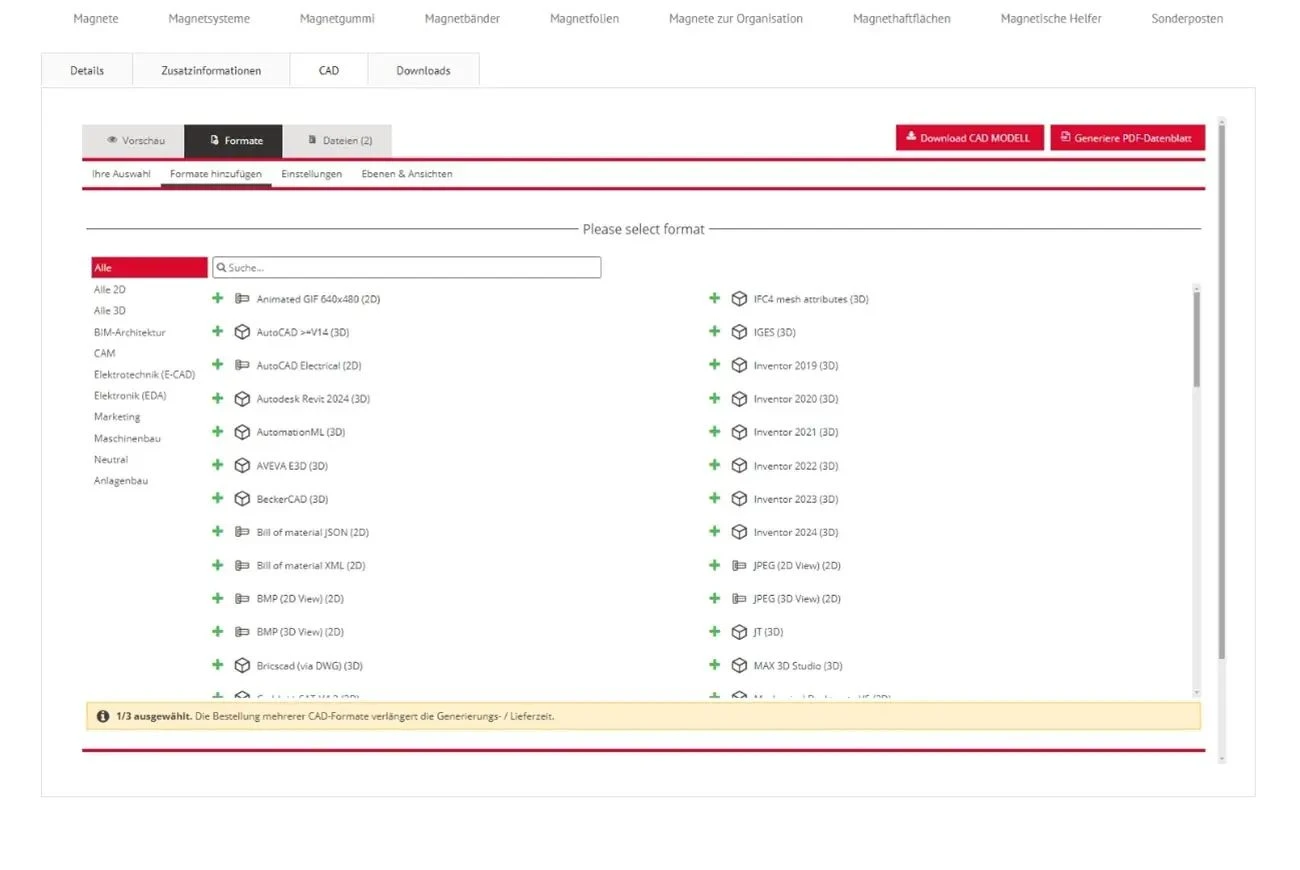

- Select your desired CAD format under Download.
- Click on the Download button in the tab menu and register.
The 3D CAD model opens.
Efficient design with sound chamber CAD data
Our CAD data saves you time and effort. Thanks to our collaboration with CADENAS, we offer an extensive CAD library that contains all relevant geometric and technical features. Our CAD drawings can be easily integrated and adapted in 2D or 3D in your CAD program.
The usual 2D and 3D processing formats are taken into account. The respective interfaces are deliberately kept neutral with SAT / STEP / IGES / DFX.
