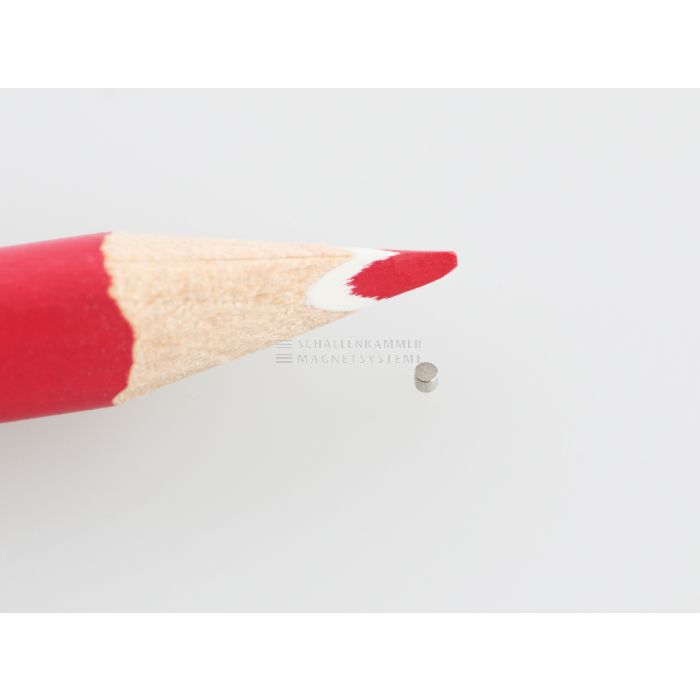

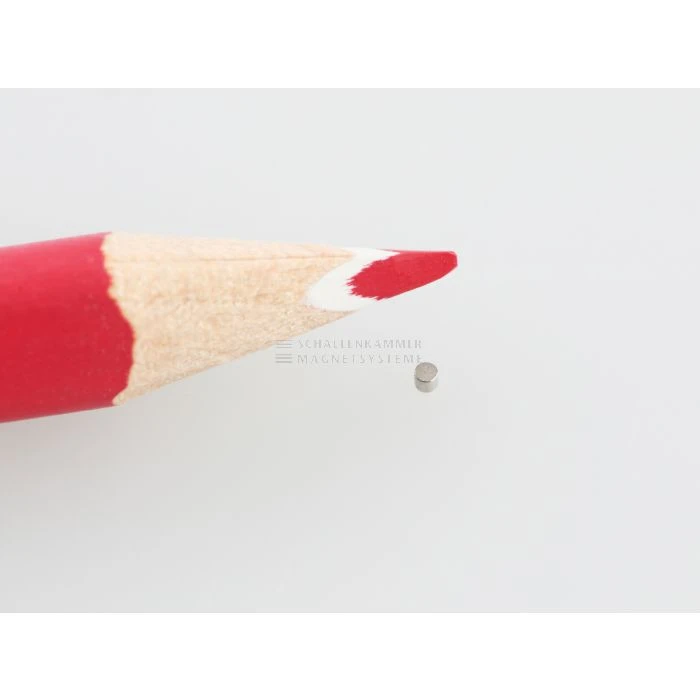

Disc magnet, NdFeB, N35EH Ø 1±0,1 x 1±0,1 mm
Item number
3500106
In stock
| Pieces | Excl. Tax | Incl. Tax |
|---|---|---|
| 1 | €0.22 | €0.26 |
| ab 25 | €0.18 | €0.21 |
| ab 50 | €0.16 | €0.19 |
Disc magnet, NdFeB,
Ø 1±0,1 x 1±0,1 mm
axially magnetized,
Ni coated
Magnetic value:
Remanence Br: 1180 - 1250 mT
Coercivity HcB: > = 875 kA/m
Coercivity HcJ: > = 2385 kA/m
Energy product (BxH)max: 247 - 271 kJ/m³
max. operating temperature: 200 °C
based on sumitomo royalty
Ø 1±0,1 x 1±0,1 mm
axially magnetized,
Ni coated
Magnetic value:
Remanence Br: 1180 - 1250 mT
Coercivity HcB: > = 875 kA/m
Coercivity HcJ: > = 2385 kA/m
Energy product (BxH)max: 247 - 271 kJ/m³
max. operating temperature: 200 °C
based on sumitomo royalty
| Magnetic material | Neodymium / NdFeB |
|---|---|
| Material | N35EH |
| Surface | nickel-plated |
| Max. operating temp. in °C | 200 |
| Diameter (D) in mm | 1 |
| Tolerance to (D) mm | +0.1/-0.1 |
| Height h1 in mm | 1 |
| Tolerance to (H) mm | +0.1/-0.1 |
| Pieces per pack | 1 |
| Package contents | 1 |
| Magnetized via | H |
| Magnetization | axial |
| EAN | 4255685111602 |
| Delivery time in days | 3 |
