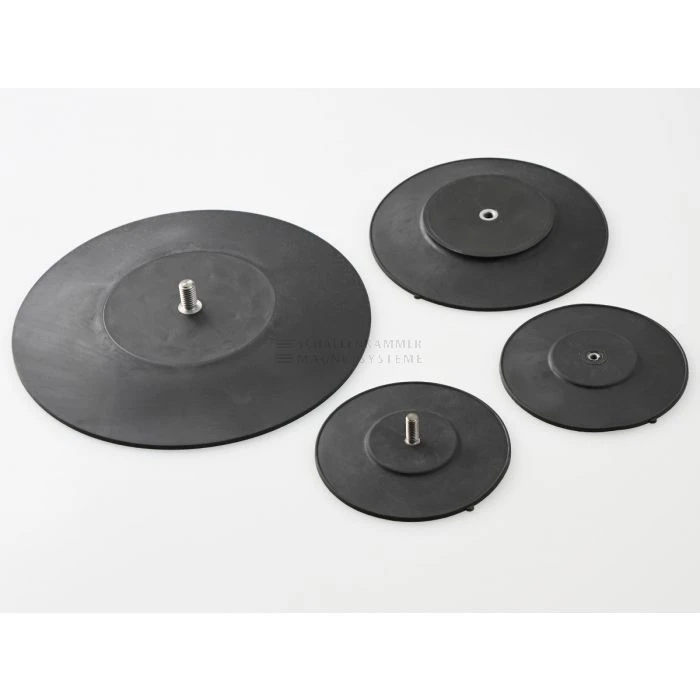

GraviFlex® Magnetic system with suction cup
Item number
3919xxGP
The GraviFlex® magnetic system with suction cup features a metric thread that can be screwed onto various objects. The rubber coating protects sensitive surfaces from scratches and staining and improves shear strength. The soft suction cup creates an additional vacuum around the magnet, providing greater security. During sudden movements, the suction cup holds the device securely to the surface and provides a high holding force.
In stock
Magnetic system with rubber coating, maximum operating temperature 80 °C
| Delivery time in days | 2-3 days |
|---|
All products
Rubber-coated magnet system with suction cup, with internal thread, D: 125 mm, L: 8.5 mm, M6, NdFeB
Item number: 39190125
Diameter (D) in mm: 125
Height h1 in mm: 8.5
Thread : M6
Delivery time in days: 2-3 days
Rubber-coated magnet system with suction cup, with internal thread, D: 180 mm, L: 8.5 mm, M6, NdFeB
Item number: 39190180
Diameter (D) in mm: 180
Height h1 in mm: 8.5
Thread : M6
Delivery time in days: 2-3 Tage
Rubber-coated magnet system with suction cup, with internal thread, D: 90 mm, L: 6 mm, M4, NdFeB
Item number: 3919090
Diameter (D) in mm: 90
Height h1 in mm: 6
Thread : M4
Delivery time in days: 2-3 days
Rubber-coated magnet system with suction cup, with external thread, D: 125 mm, L: 23.5 mm, M8x15, NdFeB
Item number: 39191125
Diameter (D) in mm: 125
Height h1 in mm: 23.5
Thread : M8x15
Delivery time in days: 2-3 days
Rubber-coated magnet system with suction cup, with external thread, D: 180 mm, L: 23.5 mm, M8x15, NdFeB
Item number: 39191180
Diameter (D) in mm: 180
Height h1 in mm: 23.5
Thread : M8x15
Delivery time in days: 2-3 days
Rubber-coated magnet system with suction cup, with external thread, D: 90 mm, L: 21 mm, M6x15, NdFeB
Item number: 3919190
Diameter (D) in mm: 90
Height h1 in mm: 21
Thread : M6x15
Delivery time in days: 2-3 days
