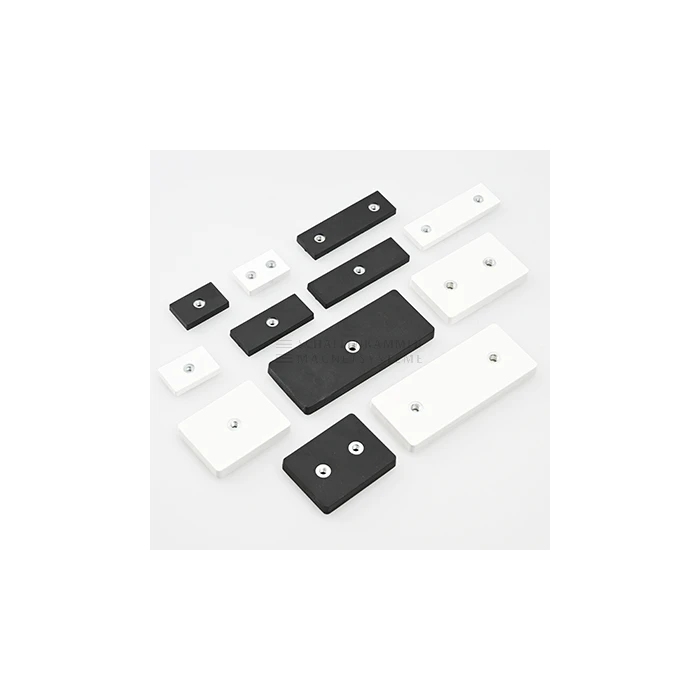

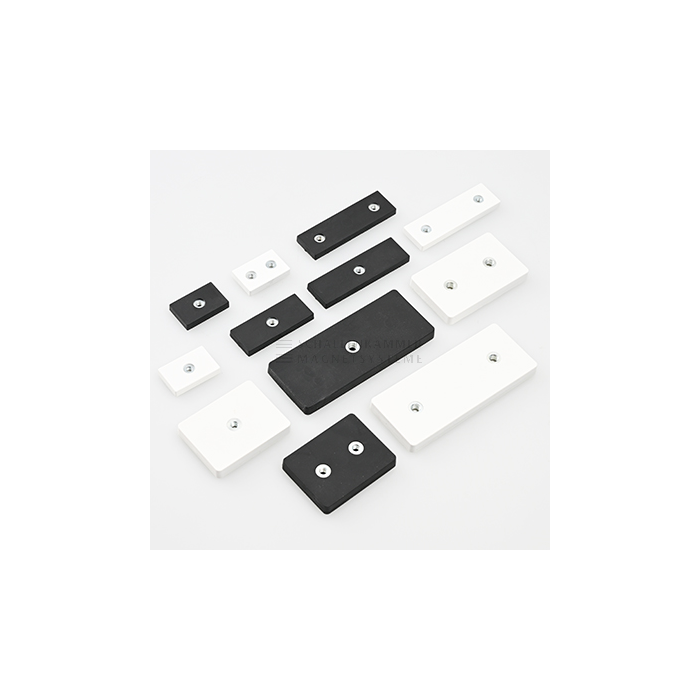

GraviFlex® with internal thread, NdFeB magnetic core
Item number
3916001GP
GraviFlex® magnetic systems with internal threads. These high-quality magnetic systems offer very high holding force, while the sturdy, protective rubber coating protects sensitive surfaces from scratches and enhances adhesion to prevent unwanted slippage. The version with two internal threads provides additional security and prevents the magnetic system from rotating unintentionally.
In stock
GraviFlex® magnetic system with internal thread, rectangular, NdFeB magnetic core, magnetic system with rubber coating, operating temperature max. 80 °C
| Delivery time in days | 2-3 days |
|---|
All products
Rubber-coated magnet system, female thread, flush-mounted, M4, L: 35 mm, W: 22.5 mm, H: 6.0 mm, black
Item number: 3916001
Color: black
Length (L) in mm: 35
Width (B) in mm: 22.5
Height h1 in mm: 6
Thread : M4
Delivery time in days: 2-3 days
Rubber-coated magnet system, internal thread, flush-mounted, M4, L: 35 mm, W: 22.5 mm, H: 6.0 mm, white
Item number: 3916001WS
Color: white
Length (L) in mm: 35
Width (B) in mm: 22.5
Height h1 in mm: 6
Thread : M4
Delivery time in days: 2-3 days
Rubber-coated magnet system, 2x internal threads, flush-mounted, M4, L: 35 mm, W: 22.5 mm, H: 6.0 mm, black
Item number: 3916002
Color: black
Length (L) in mm: 35
Width (B) in mm: 22.5
Height h1 in mm: 6
Thread : 2xM4
Delivery time in days: 2-3 days
Rubber-coated magnet system, 2x internal threads, flush-mounted, M4, L: 35 mm, W: 22.5 mm, H: 6.0 mm, white
Item number: 3916002WS
Color: white
Length (L) in mm: 35
Width (B) in mm: 22.5
Height h1 in mm: 6
Thread : 2xM4
Delivery time in days: 2-3 days
Rubber-coated magnet system, internal thread, flush-mounted, M4, L: 55 mm, W: 22.5 mm, H: 6.0 mm, black
Item number: 3916003
Color: black
Length (L) in mm: 55
Width (B) in mm: 22.5
Height h1 in mm: 6
Thread : M4
Delivery time in days: 2-3 days
Rubber-coated magnet system, internal thread, flush-mounted, M4, L: 55 mm, W: 22.5 mm, H: 6.0 mm, white
Item number: 3916003WS
Color: white
Length (L) in mm: 55
Width (B) in mm: 22.5
Height h1 in mm: 6
Thread : M4
Delivery time in days: 2-3 days
Rubber-coated magnet system, 2x internal threads, flush-mounted, M4, L: 55 mm, W: 22.5 mm, H: 6.0 mm, black
Item number: 3916004
Color: black
Length (L) in mm: 55
Width (B) in mm: 22.5
Height h1 in mm: 6
Thread : 2xM4
Delivery time in days: 2-3 days
Rubber-coated magnet system, 2x internal threads, flush-mounted, M4, L: 55 mm, W: 22.5 mm, H: 6.0 mm, white
Item number: 3916004WS
Color: white
Length (L) in mm: 55
Width (B) in mm: 22.5
Height h1 in mm: 6
Thread : 2xM4
Delivery time in days: 2-3 days
Rubber-coated magnet system, internal thread, flush-mounted, M5, L: 59 mm, W: 45 mm, H: 8.5 mm, black
Item number: 3916005
Color: black
Length (L) in mm: 59
Width (B) in mm: 45
Height h1 in mm: 8.5
Thread : M5
Delivery time in days: 2-3 days
Rubber-coated magnetic system, internal thread, flush-mounted, M5, L: 59 mm, W: 45 mm, H: 8.5 mm, white
Item number: 3916005WS
Color: white
Length (L) in mm: 59
Width (B) in mm: 45
Height h1 in mm: 8.5
Thread : M5
Delivery time in days: 2-3 days
Rubber-coated magnet system, 2x internal threads, flush-mounted, M5, L: 59 mm, W: 45 mm, H: 8.5 mm, black
Item number: 3916006
Color: black
Length (L) in mm: 59
Width (B) in mm: 45
Height h1 in mm: 8.5
Thread : 2xM5
Delivery time in days: 2-3 days
Rubber-coated magnet system, 2x internal threads, flush-mounted, M5, L: 59 mm, W: 45 mm, H: 8.5 mm, white
Item number: 3916006WS
Color: white
Length (L) in mm: 59
Width (B) in mm: 45
Height h1 in mm: 8.5
Thread : 2xM5
Delivery time in days: 2-3 days
Rubber-coated magnet system, internal thread, flush-mounted, M6, L: 74 mm, W: 45 mm, H: 8.5 mm, black
Item number: 3916007
Color: black
Length (L) in mm: 74
Width (B) in mm: 45
Height h1 in mm: 8.5
Thread : M6
Delivery time in days: 2-3 days
Rubber-coated magnetic system, internal thread, flush-mounted, M6, L: 74 mm, W: 45 mm, H: 8.5 mm, white
Item number: 3916007WS
Color: white
Length (L) in mm: 74
Width (B) in mm: 45
Height h1 in mm: 8.5
Thread : M6
Delivery time in days: 2-3 days
Rubber-coated magnet system, 2x internal threads, flush-mounted, M6, L: 74 mm, W: 45 mm, H: 8.5 mm, black
Item number: 3916008
Color: black
Length (L) in mm: 74
Width (B) in mm: 45
Height h1 in mm: 8.5
Thread : 2xM6
Delivery time in days: 2-3 days
Rubber-coated magnet system, 2x internal threads, flush-mounted, M6, L: 74 mm, W: 45 mm, H: 8.5 mm, white
Item number: 3916008WS
Color: white
Length (L) in mm: 74
Width (B) in mm: 45
Height h1 in mm: 8.5
Thread : 2xM6
Delivery time in days: 2-3 days
Rubber-coated magnet system, internal thread, flush-mounted, M4, L: 75 mm, W: 22.5 mm, H: 6.0 mm, black
Item number: 3916009
Color: black
Length (L) in mm: 75
Width (B) in mm: 22.5
Height h1 in mm: 6
Thread : M4
Delivery time in days: 2-3 days
Rubber-coated magnet system, internal thread, flush-mounted, M4, L: 75 mm, W: 22.5 mm, H: 6.0 mm, white
Item number: 3916009WS
Color: white
Length (L) in mm: 75
Width (B) in mm: 22.5
Height h1 in mm: 6
Thread : M4
Delivery time in days: 2-3 days
Rubber-coated magnet system, 2x internal threads, flush-mounted, M4, L: 75 mm, W: 22.5 mm, H: 6.0 mm, black
Item number: 3916010
Color: black
Length (L) in mm: 75
Width (B) in mm: 22.5
Height h1 in mm: 6
Thread : 2xM4
Delivery time in days: 2-3 days
Rubber-coated magnet system, 2x internal threads, flush-mounted, M4, L: 75 mm, W: 22.5 mm, H: 6.0 mm, white
Item number: 3916010WS
Color: white
Length (L) in mm: 75
Width (B) in mm: 22.5
Height h1 in mm: 6
Thread : 2xM4
Delivery time in days: 2-3 days
Rubber-coated magnet system, internal thread, flush-mounted, M6, L: 110 mm, W: 45 mm, H: 8.5 mm, black
Item number: 3916011
Color: black
Length (L) in mm: 110
Width (B) in mm: 45
Height h1 in mm: 8.5
Thread : M6
Delivery time in days: 2-3 days
Rubber-coated magnet system, internal thread, flush-mounted, M6, L: 110 mm, W: 45 mm, H: 8.5 mm, white
Item number: 3916011WS
Color: white
Length (L) in mm: 110
Width (B) in mm: 45
Height h1 in mm: 8.5
Thread : M6
Delivery time in days: 2-3 days
Rubber-coated magnet system, 2x internal threads, flush-mounted, M6, L: 110 mm, W: 45 mm, H: 8.5 mm, black
Item number: 3916012
Color: black
Length (L) in mm: 110
Width (B) in mm: 45
Height h1 in mm: 8.5
Thread : 2xM6
Delivery time in days: 2-3 days
Rubber-coated magnet system, 2x internal threads, flush-mounted, M6, L: 110 mm, W: 45 mm, H: 8.5 mm, white
Item number: 3916012WS
Color: white
Length (L) in mm: 110
Width (B) in mm: 45
Height h1 in mm: 8.5
Thread : 2xM6
Delivery time in days: 2-3 days
