Magnetic sheet 195
– Auably the strongest magnetic sheet in the world.
Magnetic sheet195 offers exceptionally high holding force and enables simple solutions for a wide range of applications.
It is particularly well-suited for demanding applications where conventional magnetic films reach their limits.
Thanks to its high magnetic performance—which can also be relevant in sensor technology—even small magnetic surfaces can hold reliably
– ideal for limited installation space and low profile designs.
Whether for securing, holding, and positioning; for quick changeover processes; or for durable and removable labeling.
This strong magnetic film enables simple and flexible solutions without drilling, screws, or permanent adhesives.
Its high holding force opens up new application possibilities and ensures a reliable hold even during movement and vibration.
Benefits at a Glance
Significantly higher adhesive force
Noticeably stronger hold than with
conventional magnetic sheets—even
on smaller magnetic surfaces.
Thinner material
The low profile enables
compact solutions in
limited installation spaces.
Very flexible
Easily bendable and flexible
— even for complex
shapes and applications.
Easy to punch and cut
Quick and precise to work with.
Custom dimensions and shapes
are easy to achieve.
Ideal for industrial applications
Reliable for manufacturing, assembly
, and technical applications—
from individual parts to mass production.
Technical Performance for Demanding Applications
Magnetic sheet 195 is multipole-magnetized on one side and has an anisotropic structure. As a result, it achieves high magnetic performance even at low material thicknesses and offers a high-performance solution for any technical application.

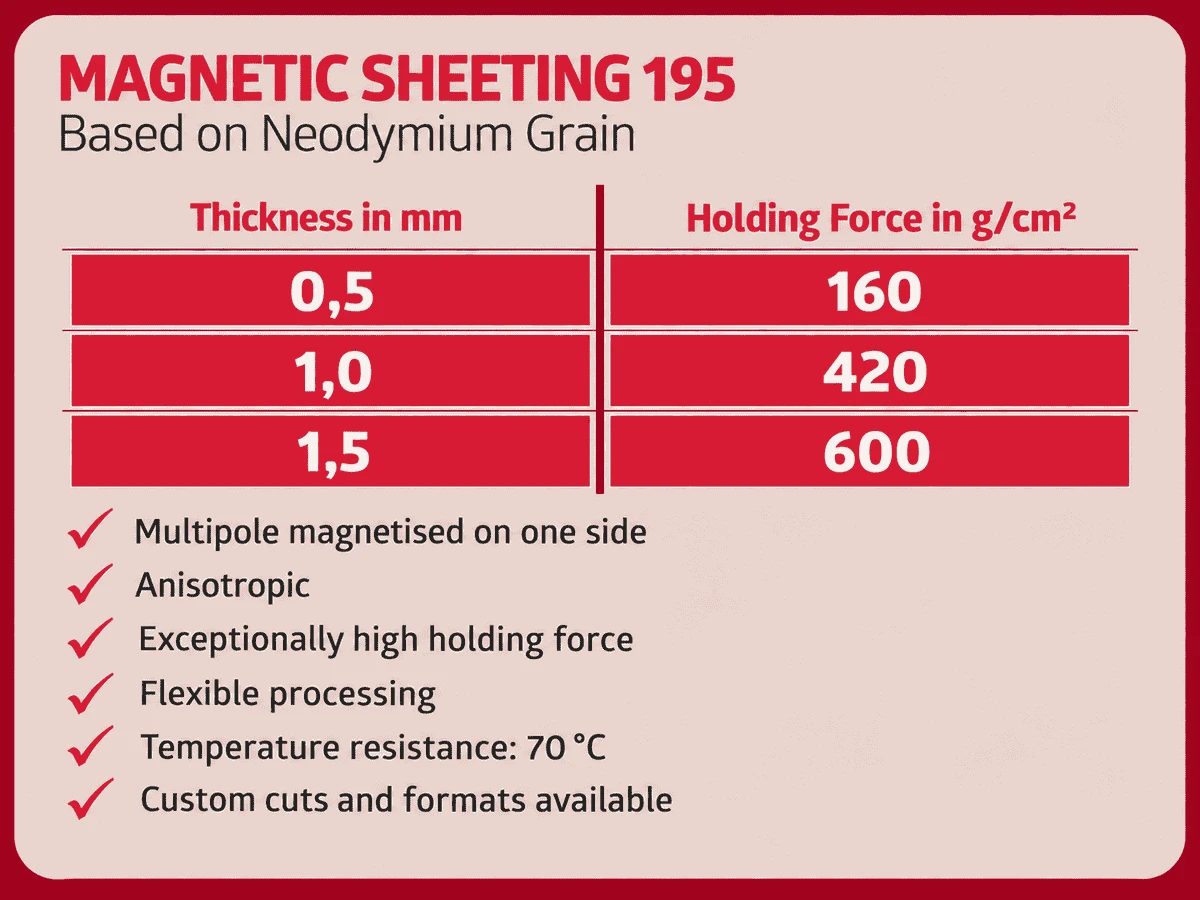

Depending on the required holding force, three material thicknesses are available: 0.5 mm, 1.0 mm, and 1.5 mm. This allows the magnetic foil to be selected specifically based on available installation space and the required holding force.
Despite its high magnetic performance, the film remains flexible to work with and can be cut to custom dimensions and formats. With a temperature resistance of up to 70 °C, it is also suitable for reliable use under corresponding ambient temperatures.
More Power in a Small Space
The higher holding force of Magnetic sheet 195 is particularly advantageous in situations where only a small area is available. While conventional magnetic film may require a larger magnetic surface area to achieve the necessary holding force, Magnetic sheet 195 can achieve a high holding force even on a smaller surface area.
This provides additional flexibility for compact components and designs with limited installation space. For larger applications, the magnetic foil is available in sheet sizes of 1,000 × 300 mm and can be further processed to meet specific requirements.
*Comparative values depend on the substrate and application
Versatile Applications
Magnetic Film 195 is suitable for a wide range of technical and industrial applications. It offers flexible options for holding, securing, and positioning, particularly in mechanical engineering, automation, fixture and toolmaking, as well as in robotics and sensor technology.
Wherever components need to be securely held, temporarily fastened, or positioned quickly and consistently, the magnetic film offers a simple and reversible solution. It can be integrated into existing processes as well as incorporated into new designs.
This makes it possible to implement customized solutions—from individual components to industrial mass production applications.
Order Magnetic Sheet 195 now!
-
Magnetic sheet 195As low as €91.90 Excl. Tax As low as €109.36 Inc. Tax
Custom-made – tailored to your application

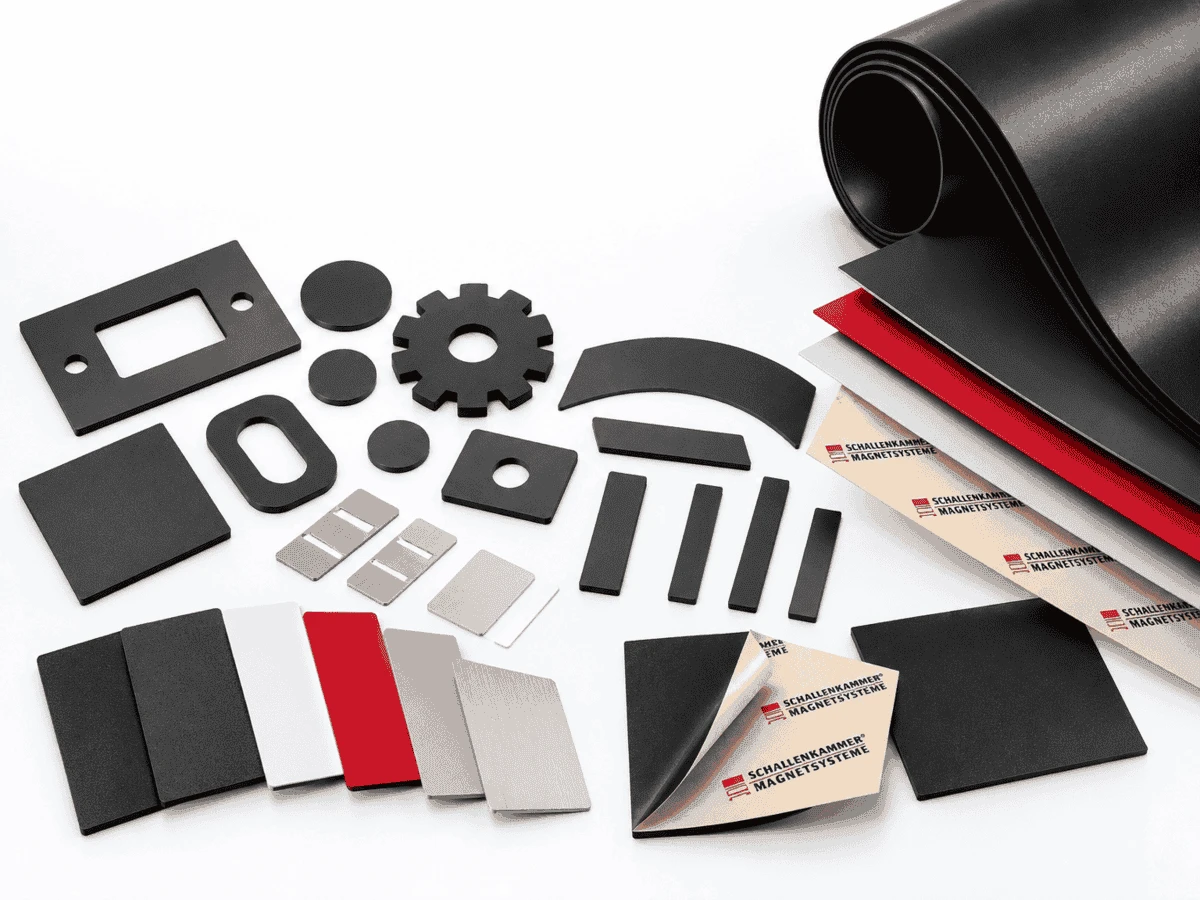

The possibilities offered by Magnetic sheet 195 are as diverse as our customers’ requirements. Dimensions and contours can be precisely tailored to the specific application—from simple strips and cut-to-size pieces to die-cut parts, cutouts, or complex geometries.
Various options are also available for further processing. For example, the magnetic film can be laminated with a self-adhesive layer to permanently attach it to non-magnetic components. Protective, decorative, or printed films are also possible if a specific surface, marking, or appearance is required.
