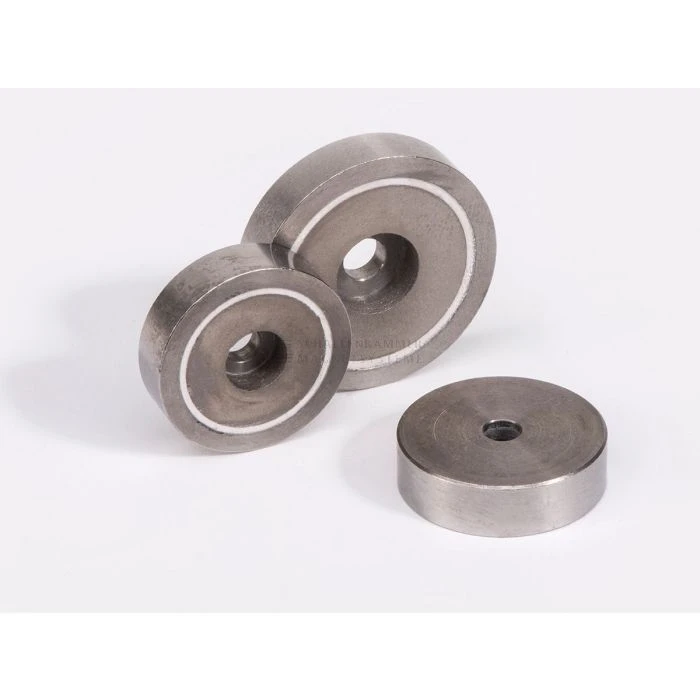

Magnetic system with cylindrical through-hole, stainless steel housing and magnetic core made of samarium-cobalt
Item number
38140VAGP
In stock
Flat magnet system, with cylindrical through-hole, SmCo magnetic core, anisotropic, stainless steel housing, max. operating temperature 350 °C
| Delivery time in days | 5 |
|---|
All products
Magnetic system with borehole, D: 20 mm, d: 4,5 mm, L: 6 mm, SmCo, stainless steel housing
Item number: 38140VA
Diameter (D) in mm: 20
Diameter (d1) in mm: 4.5
Length (L) in mm: 6
Diameter (d1) in mm: 4.5
Delivery time in days: 5
Magnetic system with borehole, D: 25 mm, d: 4,5 mm, L: 7 mm, SmCo, stainless steel housing
Item number: 38141VA
Diameter (D) in mm: 25
Diameter (d1) in mm: 4.5
Length (L) in mm: 7
Diameter (d1) in mm: 4.5
Delivery time in days: 5
Magnetic system with borehole, D: 32 mm, d: 5,5 mm, L: 7 mm, SmCo, stainless steel housing
Item number: 38142VA
Diameter (D) in mm: 32
Diameter (d1) in mm: 5.5
Length (L) in mm: 7
Diameter (d1) in mm: 5.5
Delivery time in days: 5
Magnetic system with borehole, D: 40 mm, d: 5,5 mm, L: 8 mm, SmCo, stainless steel housing
Item number: 38143VA
Diameter (D) in mm: 40
Diameter (d1) in mm: 5.5
Length (L) in mm: 8
Diameter (d1) in mm: 5.5
Delivery time in days: 5
