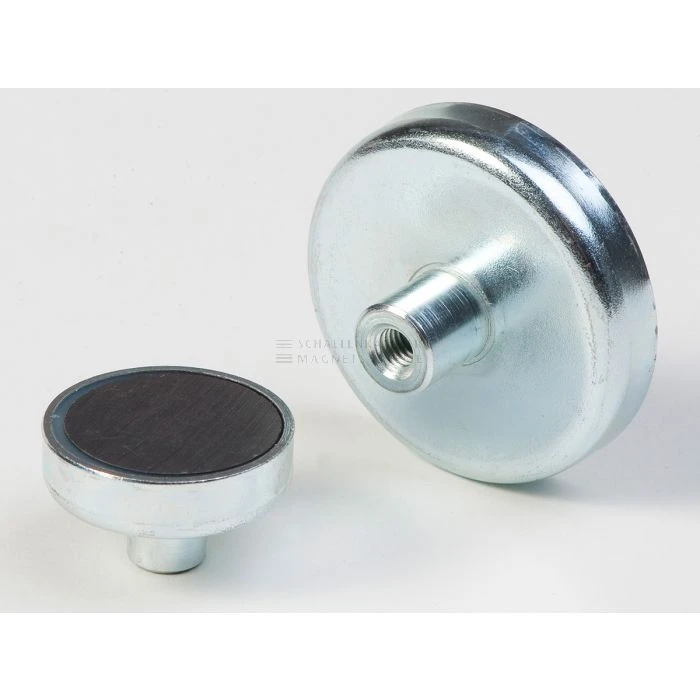

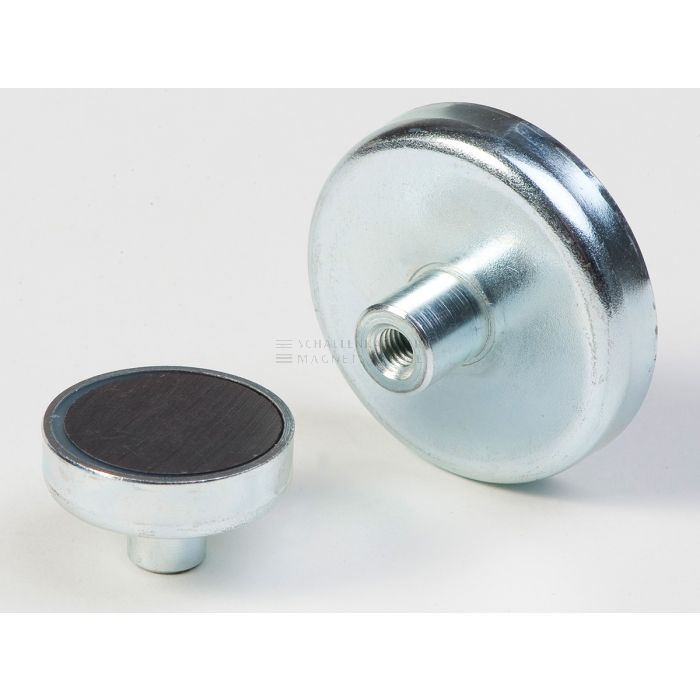

Magnetic system with threaded socket and magnetic core made of ferrite

Name: Magnetic system with threaded socket and magnetic core made of ferrite
SKU: 38025GP

Item number

38025GP

In stock

Not found what you are looking for? Please contact us!

Together we will find an individual solution for your requirements: 0049 9367 / 98977-0

Details

Magnetic system flat, with threaded bush, magnetic core ferrite, anisotropic, galvanized metal housing, max. operating temperature 200 °C

More Information

More Information
Delivery time in days	5

CAD

Downloads

All products

Magnetic system with threaded socket, D: 10 mm, L: 11,5 mm, ferrite, metal housing

Item number: 38025 Diameter (D) in mm: 10 Length (L) in mm: 11.5 Thread : M3 Delivery time in days: 5

Select article

Magnetic system with threaded socket, D: 13 mm, L: 11,5 mm, ferrite, metal housing

Item number: 38026 Diameter (D) in mm: 13 Length (L) in mm: 11.5 Thread : M3 Delivery time in days: 5

Select article

Magnetic system with threaded socket, D: 16 mm, L: 11,5 mm, ferrite, metal housing

Item number: 38027 Diameter (D) in mm: 16 Length (L) in mm: 11.5 Thread : M3 Delivery time in days: 5

Select article

Magnetic system with threaded socket, D: 20 mm, L: 13 mm, ferrite, metal housing

Item number: 38028 Diameter (D) in mm: 20 Length (L) in mm: 13 Thread : M3 Delivery time in days: 5

Select article

Magnetic system with threaded socket, D: 32 mm, L: 15 mm, ferrite, metal housing

Item number: 38030 Diameter (D) in mm: 32 Length (L) in mm: 15 Thread : M4 Delivery time in days: 5

Select article

Magnetic system with threaded socket, D: 36 mm, L: 16 mm, ferrite, metal housing

Item number: 38031 Diameter (D) in mm: 36 Length (L) in mm: 16 Thread : M4 Delivery time in days: 5

Select article

Magnetic system with threaded socket, D: 40 mm, L: 18 mm, ferrite, metal housing

Item number: 38032 Diameter (D) in mm: 40 Length (L) in mm: 18 Thread : M5 Delivery time in days: 5

Select article

Magnetic system with threaded socket, D: 47 mm, L: 17 mm, ferrite, metal housing

Item number: 38033 Diameter (D) in mm: 47 Length (L) in mm: 17 Thread : M4 Delivery time in days: 5

Select article

Magnetic system with threaded socket, D: 50 mm, L: 22 mm, ferrite, metal housing

Item number: 38034 Diameter (D) in mm: 50 Length (L) in mm: 22 Thread : M6 Delivery time in days: 5

Select article

Magnetic system with threaded socket, D: 57 mm, L: 18,5 mm, ferrite, metal housing

Item number: 38035 Diameter (D) in mm: 57 Length (L) in mm: 18.5 Thread : M4 Delivery time in days: 5

Select article

Magnetic system with threaded socket, D: 57 mm, L: 22,5 mm, ferrite, metal housing

Item number: 3803506 Diameter (D) in mm: 57 Length (L) in mm: 22.5 Thread : M6 Delivery time in days: 5

Select article

Magnetic system with threaded socket, D: 63 mm, L: 30 mm, ferrite, metal housing

Item number: 38036 Diameter (D) in mm: 63 Length (L) in mm: 30 Thread : M8 Delivery time in days: 5

Select article

Magnetic system with threaded socket, D: 80 mm, L: 34 mm, ferrite, metal housing

Item number: 38037 Diameter (D) in mm: 80 Length (L) in mm: 34 Thread : M10 Delivery time in days: 5

Select article

Magnetic system with threaded socket, D: 100 mm, L: 43 mm, ferrite, metal housing

Item number: 38038 Diameter (D) in mm: 100 Length (L) in mm: 43 Thread : M12 Delivery time in days: 5

Select article

Magnetic system with threaded socket, D: 125 mm, L: 50 mm, ferrite, metal housing

Item number: 38039 Diameter (D) in mm: 125 Length (L) in mm: 50 Thread : M14 Delivery time in days: 5

Select article

Magnetic system with threaded socket, D: 25 mm, L: 15 mm, ferrite, metal housing
gedreht

Item number: 3802901 Diameter (D) in mm: 25 Length (L) in mm: 15 Thread : M4 Delivery time in days: 3

Select article
